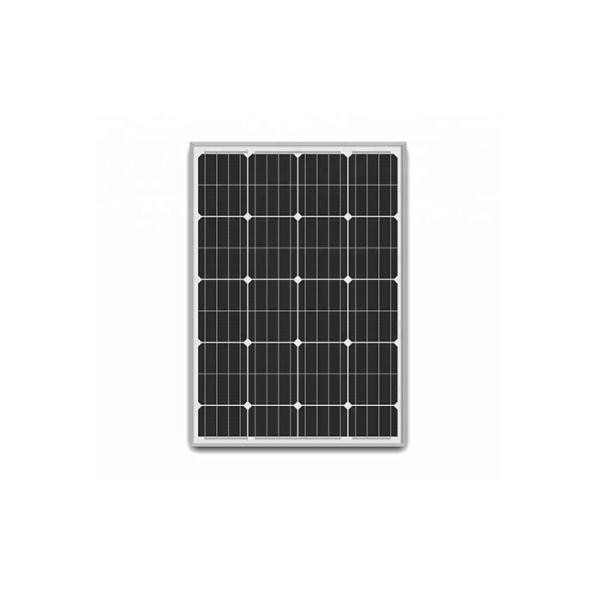

Energy Saving Monocrystalline Solar Module 100W 18V Environmental Friendly

Name: Energy Saving Monocrystalline Solar Module 100W 18V Environmental Friendly
Brand: URILIC
Price: 1 USD

China Energy Saving Monocrystalline Solar Module 100W 18V Environmental Friendly wholesale

Brand Name : URILIC

Model Number : 100W

Certification : UL,CE

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000PCS/week

Delivery Time : 5-15 days

Packaging Details : Plywood box

Product name : monocrystalline solar module

Power : 80W, 85W

Size : 765*666*30mm

Weight : 7.0kg

Solar cell : Mono 156*78 Cell

Number of cells : 36pcs

Front cover : 3.2mm High Transmission low Iron tempered glass

Solar panel : Monocrystalline 100W Solar Panel

Contact Now

100W-18V Monocrystalline PV Cells Monocrystalline Solar Panels

Description:
The monocrystalline silicon solar panel is a module body in which a single crystal silicon cell is formed in a different string and array. The main advantages of single crystal plates are conversion efficiency and smooth aesthetics. Monocrystalline Solar Panels have been the go-to the choice for many years. They are among the oldest, most efficient and most dependable ways to produce electricity from the sun. Each module is made from a single silicon crystal and it is recognized by their colour, which is typically black or iridescent blue.

Features:

High efficiency monocrystalline solar power panel.
Outstanding low-light performance.
High transmission tempered glass ensure high quaility solar panel.
Solar cells solar panel with durable anodized aluminum frame.
Efficient protection from frame deformation and water accumulation.
Rugged design to withstand high wind pressure and snow load, easy installation.

Product Details:

Model	U100M-12
Peak Power (W)	100±3%
Open circuit voltage (V)	21.6
Peak Voltage (V)	18.0
peak current (A)	4.45
Short-circuit current (A)	4.84
Cell efficiency	19.0%
Maximum overcurrent (A)	10A
Maximum system voltage (V)	1000V DC
Rated operating temperature	48±2°C
Working temperature range	-40°C- +85°C
Current temperature coefficient	0.1%/°C
Voltage temperature coefficient	-0.37%/°C
Power Temperature Coefficient	0.45%/°C
Solar Cell	156780.19mm
Number of cells	36 pcs
Size	76566630mm
Weight	7.0 kgs
Surface Packaging	Low iron tempered glass/3.2mm
Sealant	Ethylene Vinyl Acetate (EVA)
Border	Anodized Aluminum/Silver
Junction Box	Crimping + Welding Treatment
Pre-wind pressure	2400Pa
Back wind pressure	2400Pa
Maximum hail impact	25mm/ 23m/s

Energy Saving Monocrystalline Solar Module 100W 18V Environmental Friendly

100W-18V small solar panel assembly size chart

Our advantage:

High conversion efficiency, high-transmission rate.
Energy saving, environmental-friendly, Safty, No pollution.
Advanced technology, strict quality control system.
Easy installation, safe operation, free maintenance.
10-year product warranty,12-year warranty at 90% power output,25-year warranty at 80% power output.
Quality in priority, clients the upmost.

Solar Panel Details Show:


Solar Cell High Efficiency PV Cells Appearance Consistency Color sorting ensure consistent appearance on each module Anti-PID	Frame Frame thinkness>18mm Oxidation Film>15Pm TUV&UL standard sillica gel Ability to resist 5400Pa mechanical pressure Good anti-corruption performance in seaside environment	Solar junction box PPO material, IP67. Quality diode ensures module running safety Heat dissipation Long service life

Solar Panels Application:


Solar Lighting	Solar Camera	Solar Wind Hybrid System	Household Solar Panel
